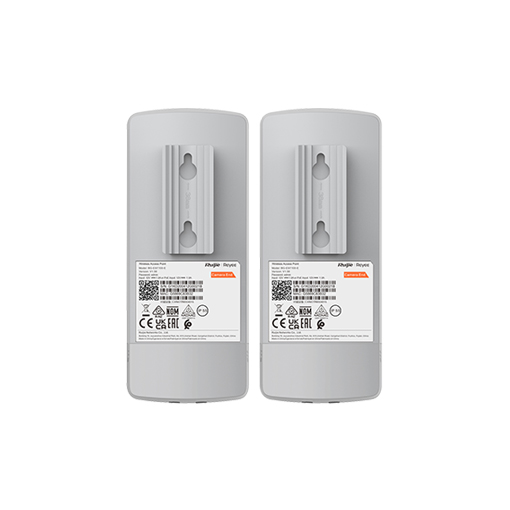

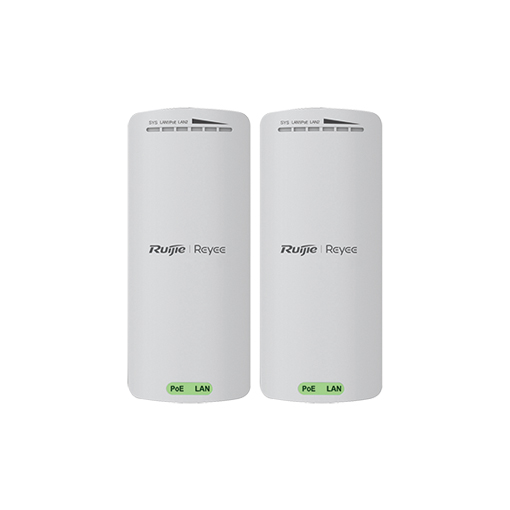

Ruijie 500m Wireless Network Bridge 8dBi (2x 10/100 Mbps LAN Ports) – Pair | RG-EST100-E

Product Summary

The RG-EST100-E is an IEEE 802.11b/g/n 8dBi wireless bridge for data, video surveillance backhaul or remote wireless transmissions. Applications include farms and rural property, tower cranes, factories, campuses and construction sites where you must create a wireless link for data connectivity with minimal installation time and configuration. Featuring dual LAN ports, the RG-EST100-E is perfect for connecting directly to local cameras or WiFi access points and can support up to 10 times 3MP cameras loading at 100m or 5 times 3MP cameras loading at 500m.

Features and Benefits

• Featuring 2 x 10/100 RJ45 ports for direct-to-device connection for access points or cameras.
• 2.4GHz single-band dual-stream chip with transmit power ≤100 mW (20 dBm) (adjustable)
• PTMP supported bridging (i.e. one master to multiple slaves)
• IP55 Weatherproof, -30~60℃ for guaranteed stable operation in outdoor or elevator environments, etc.
• Power via 12 VDC power supply or 12 VDC passive PoE
• One-click set-up and management via the free cloud app.
