Ruijie 31.2W Gigabit Passive PoE Power Inserter 52VDC | RG-POE-AT30

Product Summary

The RG-POE-AT30 passive power inserter delivers reliable high-power connectivity for demanding network devices. Providing up to 31.2W of power at 52V DC, it’s perfectly suited for powering Ruijie Reyee wireless access points and other compatible 52 DC equipment. Featuring GbE RJ45 input and output ports for high-speed data transfer, the RG-POE-AT30 ensures seamless power and data delivery. Designed for dependable performance, it also supports a wide operating temperature range, making it ideal for a variety of installation environments.

Features and Benefits

• Passive PoE power inserter delivering up to 31.2 Watts of power
• Output voltage 52V DC @ 0.3A for efficient power delivery

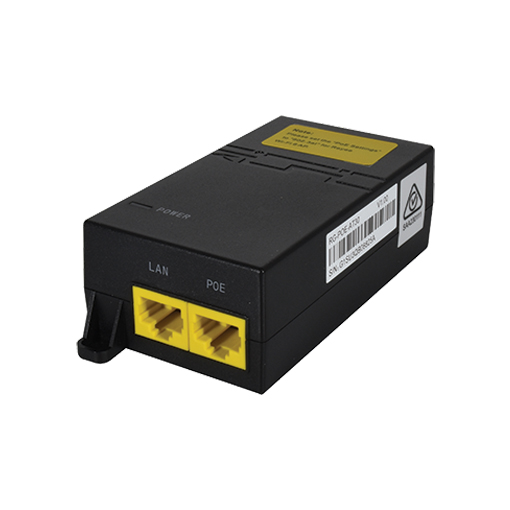

• 2x RJ45 Gigabit 10/100/1000 Mbps ports
• Can be used to power many 52V DC compliant PoE devices, Wi-Fi access points, IP PTZ cameras, etc.
• Inrush current under 80A at 230V AC for safety
• 2-pair powering, pins 4, 5(+) and pins 7, 8(-) with passive PoE
